RFI  |  SKU: CD7195

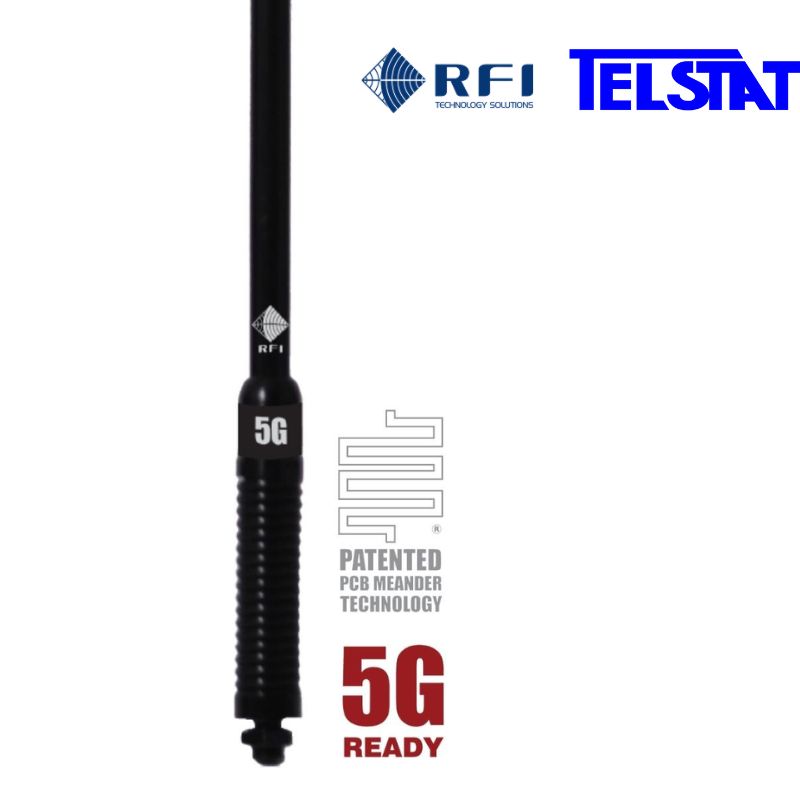

RFI CD8195 5G LTE Cellular Antenna

$16400 AUD
Tax included Shipping calculated at checkout.

Delivery and Shipping

We use different courier companies and Australia Post based on your location and package size to deliver your order. Items are shipped within 1-2 days of your placing the order, unless the item is backordered, in which case you will be promptly notified. It will typically take 1-6 business days from shipment before you will receive your order. We will notify you if there are any likely delays in shipping your order.

PLEASE NOTE: We do not ship large items to PO Box addresses.

You can pick up your order from our store in Endeavour Hills. Please give atleast 24 hours’ notice if you wish to do so.

Description
Frequency: 698-960MHz, 1710-2170MHz, 2300-2700MHz, 3400-3800 MHz
Tunable Bandwidth Full
Nominal Gain dBi 6.5 / 4.5 / 5.5 / 6.5
Radiator Material: Flexible PCB
Power W 10
Cable and Connector 5m 9006 Low Loss Cable Terminated with SMA Male Connector
Suggested Installation Bull Bar, Guard, Boot
VSWR <2.5:1
Height 920mm
RFI CD8195 5G LTE antenna not only covers the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is ideal for use with Cel-Fi, cellular modems & active repeaters, especially when signal is poor. The outstanding performance of the CD8100 series lies in the use of the patented Meanderâ„¢ radiating elements. These Meanderâ„¢ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD8195 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
• Patented PCB based collinear design offering the ultimate in pattern and gain stability
• Ideal for new 5G/LTE networks with true multi-band coverage
• High gain across all bands making it suitable for fringe and rural applications
