Cel-Fi  |  SKU: R41Stationary

Cel-Fi R41 Home/Office Kit - Telstra, Optus & Vodafone

$1,39900 AUD
Tax included Shipping calculated at checkout.

Delivery and Shipping

We use different courier companies and Australia Post based on your location and package size to deliver your order. Items are shipped within 1-2 days of your placing the order, unless the item is backordered, in which case you will be promptly notified. It will typically take 1-6 business days from shipment before you will receive your order. We will notify you if there are any likely delays in shipping your order.

PLEASE NOTE: We do not ship large items to PO Box addresses.

You can pick up your order from our store in Endeavour Hills. Please give atleast 24 hours’ notice if you wish to do so.

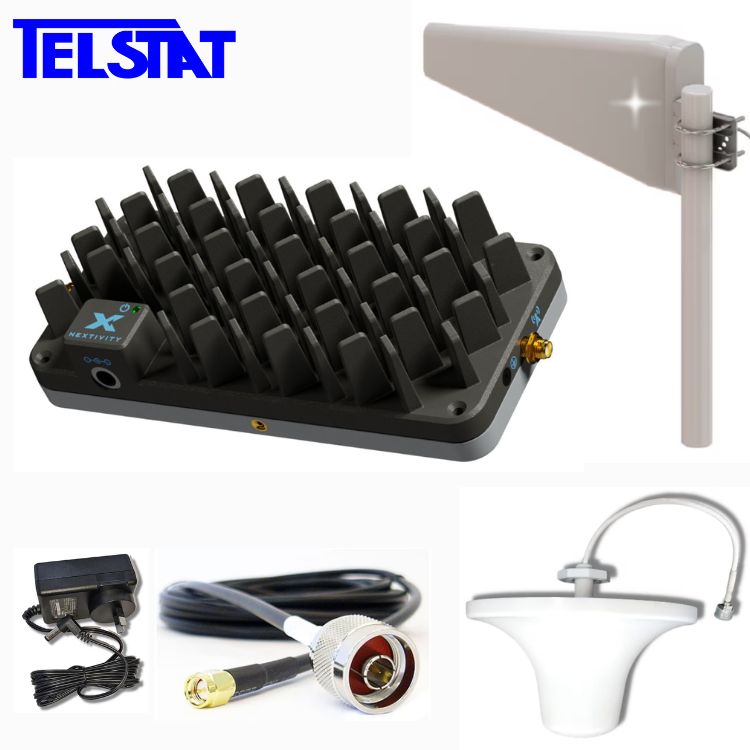

What's in the box?
  • 1 x Cel-Fi R41  with AC Power supply

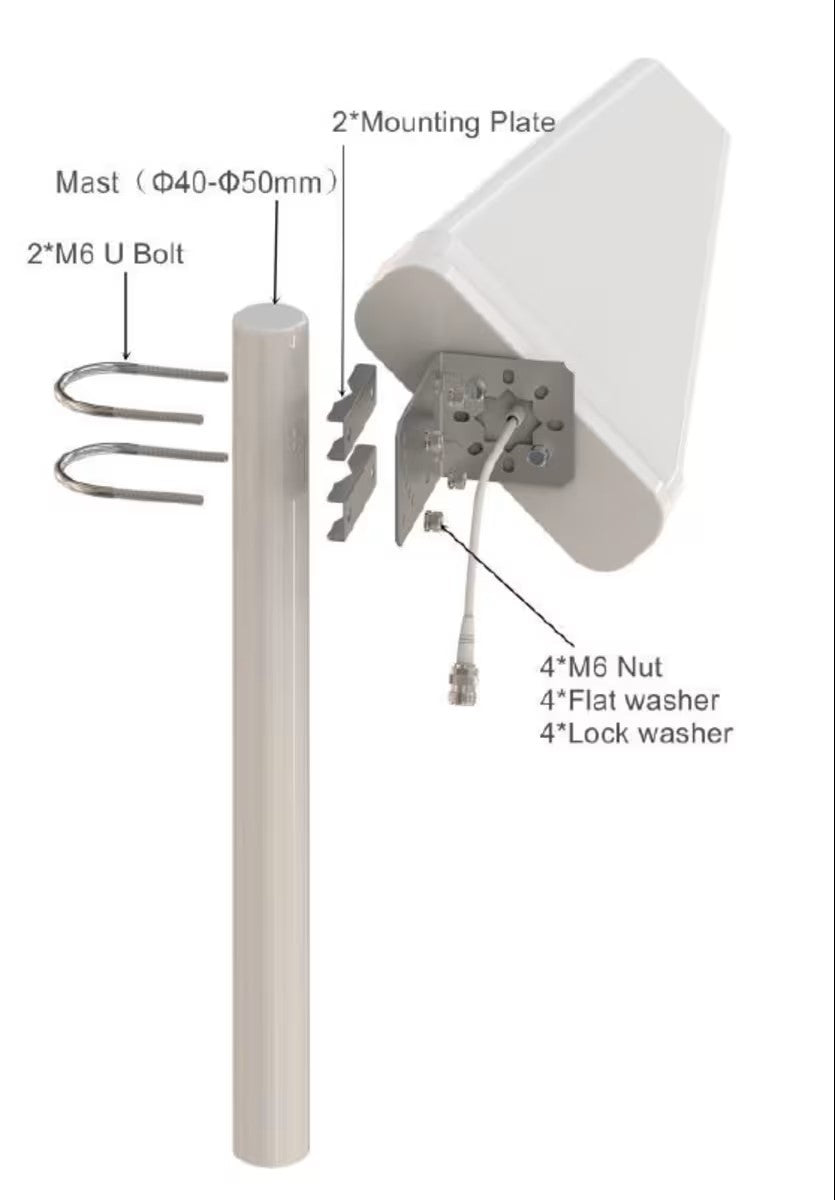

  • 1 x RFI LPDA7040 Directional Antenna with 10m cable for outside installation including 1 x 'L' Bracket, 2x mounting plates & 2x M-6 U-bolts.

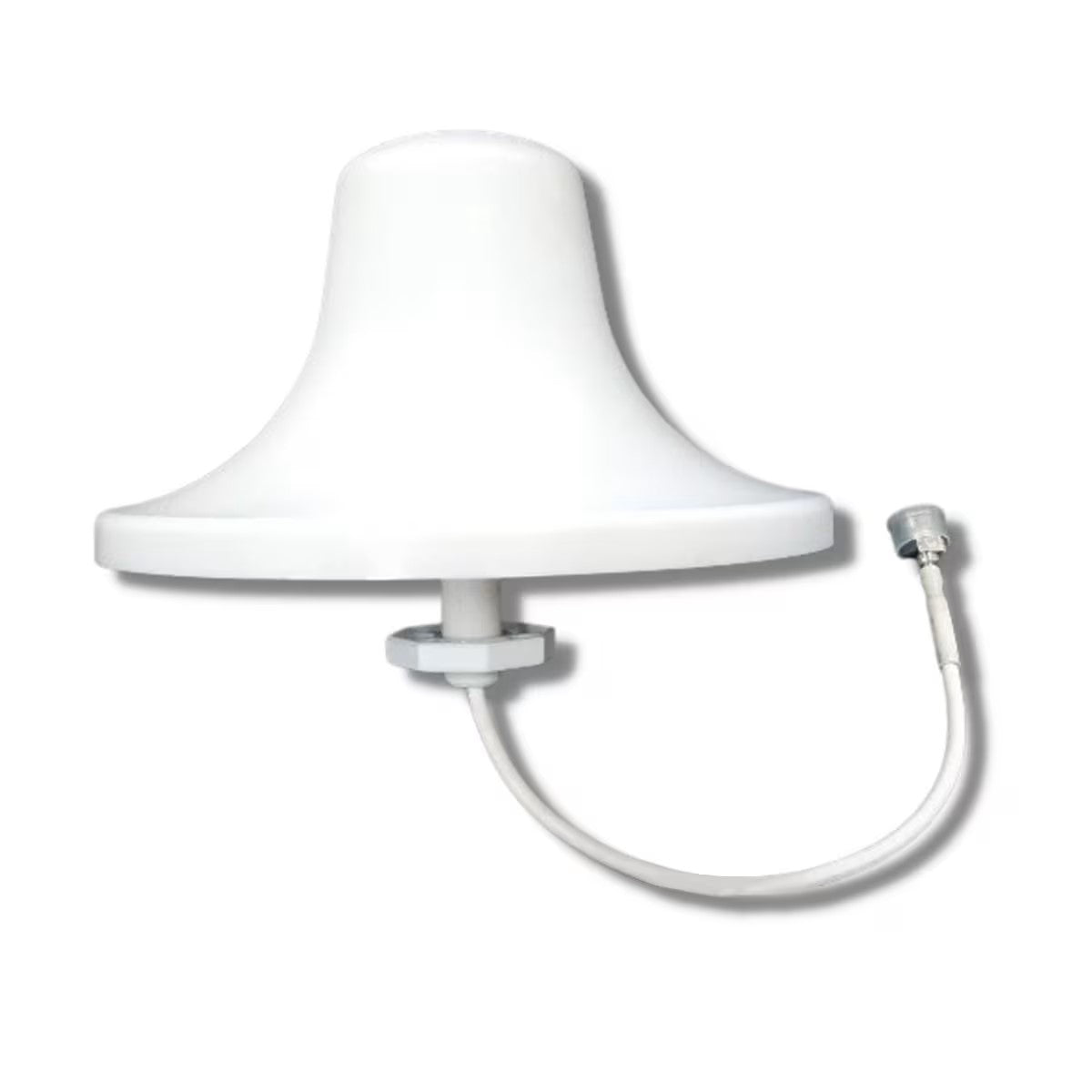

  • 1 x DAS6938-SOC150-N ceiling mount antenna for indoor installation (includes 10m cable kit)

Description
The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G, 4G, and 5G connectivity inside vehicles and boats. With the latest Nextivity propriety IntelliBoost chip, ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling, texting, and streaming on the move. The system features plug-and-play operation for quick and easy setup, improving connectivity  within minutes.
ROAM R41 also supports carrier switching through the Nextivity WAVE App for iOS and Android devices. Supports Telstra & Optus network. Only 1 network can be selected at a time.
Cel-Fi works best with RFI antennas (Made in Melbourne).

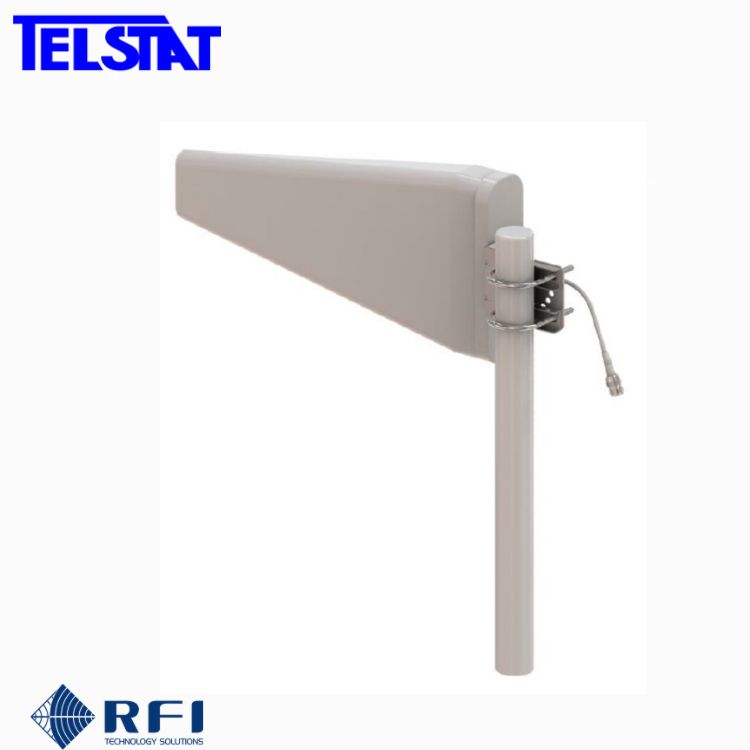

RFI LPDA7040 External Antenna
The LPDA7040-11-0.3NF is a high performance wide band log periodic antenna designed to operate in the LTE bands from 698 to 4000 MHz. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit. RFI DAS6940 Low Profile Internal Antenna The DAS6940LC-SOC150-N is a compact, PIM rated, indoor SISO omni-directional antenna antenna, covering 4G &5G Cellular bands, 689-960 MHz & 1710-4000MHz. This range is ideal for all fixed in-building coverage applications
  • Low Profile compact form factor
  • IP45 rated • Coverage across multiple cellular and WLAN bands
  • Ideal for DAS deployment for in-building coverage solutions
  • Excellent -150dBc PIM performance
  • 1 x 300mm tail terminated with N type female connector with 10m cable kit
RFI LPDA 7040 Directional Antenna:
  • IP65 rating
  • Frequency MHz -  698-960 / 1710-2700 / 3300-4000
  • Horizontal Beamwidth 90 / 75 / 54
  • Vertical Beamwidth 66 / 58 / 42
  • Mounting Area - Up to 52mm diameter pole
  • VSWR -  <2.0:1
  • Dimensions -  440 x 205 x 60mm
  • Nominal Gain [dBi]-  9.5 / 11.0 / 11.5
  • Power [W] -  50
  • Frequency Range [MHz] - 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
  • Connector - N(F)
  • Cable And Connector -  0.3 m RG141 cable terminated with N type female connector
  • Antenna Type Directional - LPDA
  • Antenna Configuration SISO
RFI SISO Omni-directional Ceiling Antenna
  • Weight [kg] -  0.33
  • Vertical Beamwidth 80 / 70 / 60
  • Construction -  White ABS
  • Termination -  Single 300mm tail with N (F) connector
  • VSWR -  <2.5:1 / <2.0:1 / <2.0:1
  • Dimensions -  266(W) x 18(H) mm
  • Nominal Gain [dBi] -  2 / 2.2 / 4.5
  • Power [W] -  50
  • Frequency Range [MHz]  - 698 - 3800
  • Connector -  N(F)
  • Antenna Type -  Omni
  • Frequency Band -  Multi-Band 700 to 2700, Multi-Band 700 to 3800
  • Antenna Configuration -  SISO
Bundle Includes:
