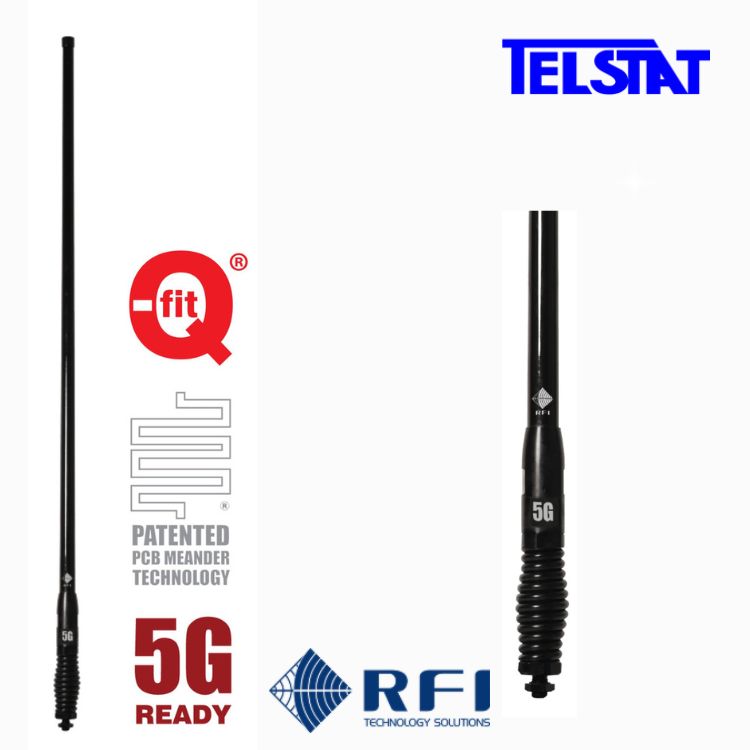

RFI CDQ8194-B LTE Mobile Antenna

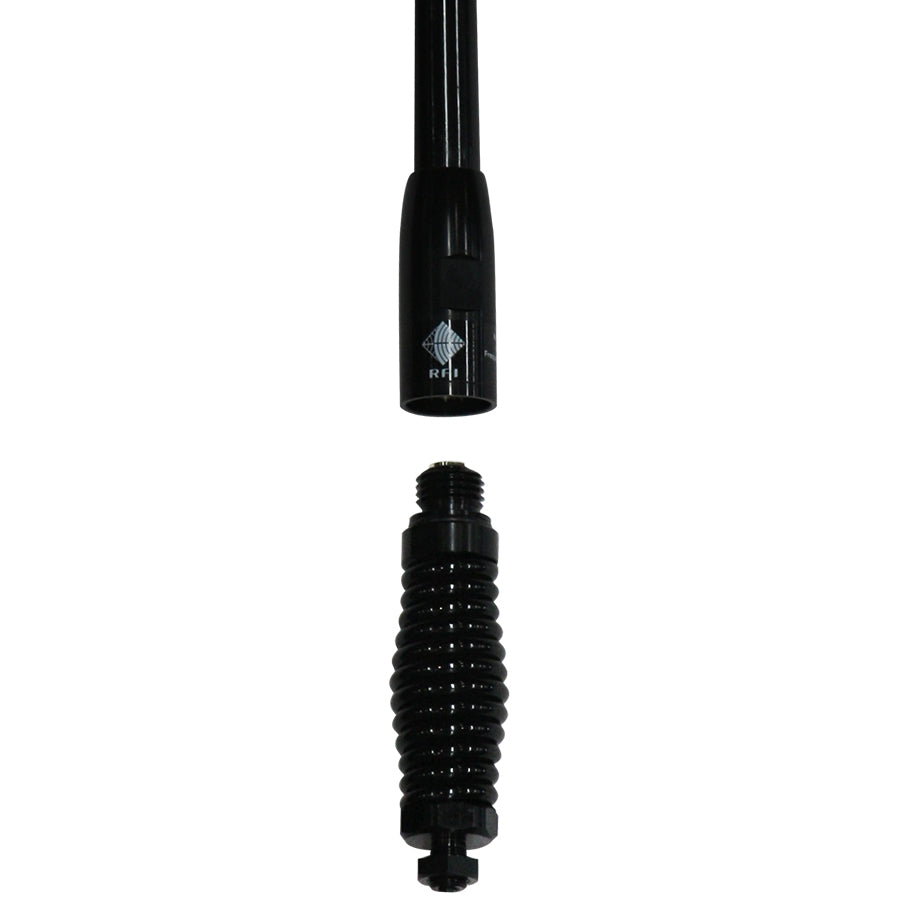

RFI CDQ8194 5G LTE antenna covers 5G LTE band (3400-3800 MHz) and the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz). It is ideal for use with cellular modems & active repeaters, especially when the signal is poor. With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CDQ8194 can be installed on a number of mounting brackets and is ideal for installations in commercial vehicles, four wheel drives and trucks.  In addition the CDQ8194 is designed with  Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antenna is provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed. • Patented PCB-based collinear design offering the ultimate in pattern and gaining stability. - Ideal for new 5G/LTE networks with true multi-band coverage. - High gain across all bands making it suiting fringe and rural applications. - Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.

• Frequency: 698-960, 1710-2170 , 2300-2700 and 3400-3800MHz
• Tunable Bandwidth - Full Nominal
• Gain dBi - 5.5 / 4.5 / 5.5/6.5
• Radiator Material: Flexible PCB
• Power W  - 10
• Cable and Connector -  5m of 9006 low loss cable terminated with SMA Male Connector
• Radome Diameter mm - 22.5 - 15.6 Tapered
• Length -  735 mm
