Axis  |  SKU: HD74WK  |  Barcode: 9321886017298

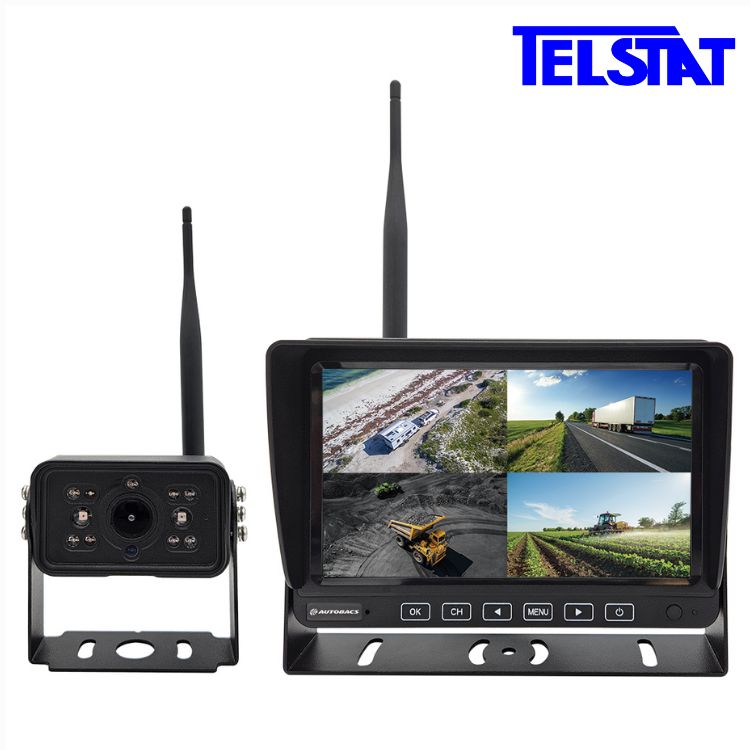

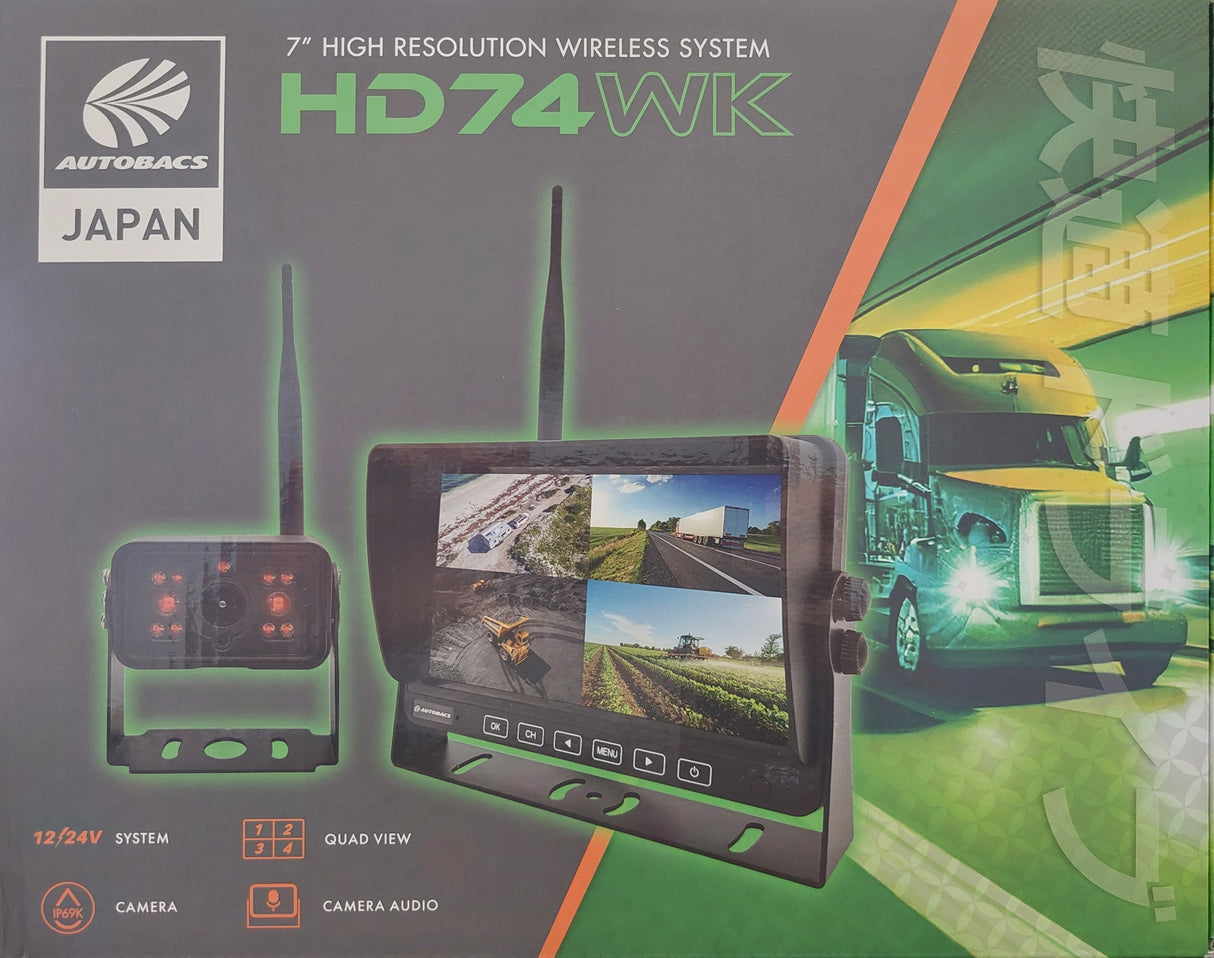

AutoBacs HD74WK Wireless Rear Camera Kit

$47500 AUD
Tax included Shipping calculated at checkout.

Delivery and Shipping

We use different courier companies and Australia Post based on your location and package size to deliver your order. Items are shipped within 1-2 days of your placing the order, unless the item is backordered, in which case you will be promptly notified. It will typically take 1-6 business days from shipment before you will receive your order. We will notify you if there are any likely delays in shipping your order.

PLEASE NOTE: We do not ship large items to PO Box addresses.

You can pick up your order from our store in Endeavour Hills. Please give atleast 24 hours’ notice if you wish to do so.

Description

The HD74WK 7 inch high resolution wireless reversing system enhances driving safety. This system features a top-of-the-line camera with audio capabilities, capable of providing crystal-clear visuals even in low light conditions. With its quad view functionality, you can easily pair up to 4 cameras and monitor multiple angles, ensuring complete visibility of your vehicle’s surroundings.

Specifications

MONITOR
• Video decoding: NTSC and PAL
• Cameras Supported: Up to 4 cameras
• Resolution: 1024 x 600
• Contrast: 800
• Brightness: 500cd/m2
• Viewing Angle 85° (Left/Right/Up/Down)
• Viewing options: Single/Split Screen/Quad
• Reversing guidelines: Selectable On/Off
• Operating frequency: 2.412~2.4835 GHz
• Time delay: 180ms max
• Operating Voltage: 10-32V DC
• Current consumption: <400mA at 12V
• Operating temperature: -20°C~+70°C
• Storage temperature: -30°C~+80°C
• Dimensions
•Excluding Mount & Sunvisor: 179mm x122mm x 28mm
Including Mount & Sunvisor: 197mm x137mm x 63mm
CAMERA
• Image Sensor: 1/2.9 inch Starlight HD
• Active pixel array: 1920 x 1080
• Viewing Angle: 120° Diagonal, 103° Horizontal
• Resolution: 1000 TV lines
• IP Rating: IP69K
• Minimum Illumination: 0.1 lux
• Operating Frequency: 2.412~2.4835GHz
• Transmitter power: 20dbm
• Operating voltage: 10-32V DC
• Current Consumption: <300mA at 12V
• Operating Temperature: -20°C~+70°C
• Storage Temperature: -30°C~+80°C
• Dimensions Excluding Mount: 79mm x 49mm x 54mm
INCLUDED
• Monitor
•  1 x Camera
• Sunshade
• U-Bracket
• Wiring Harness
• Camera DC Power Cable
• Antennas

Specifications

  • Colour
    • Black
  • Power Source
    • Vehicle electrical system
