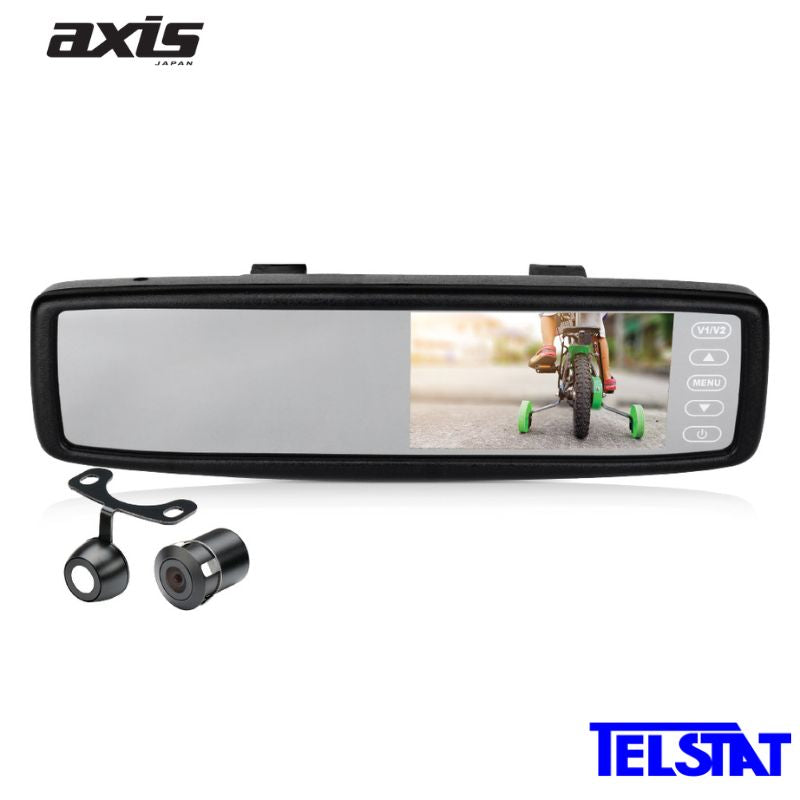

AXIS JS043K Rearview Miror Camera Kit

Axis JS043K is a discreet mirror reversing attachment designed specifically for your vehicle. This innovative device seamlessly integrates with your existing mirror and activates a mini camera as soon as you engage the reverse gear. With a clear image displayed, this system ensures optimal visibility for the driver, promoting safety for, both, children, pedestrians and valuable assets. By providing a clear view while reversing, it effectively avoids potential accidents, thus preventing expensive repairs for dents and other damages. Additionally, the JS043K offers an additional video input, allowing for the connection of a second camera or multimedia/navigation/DVD input.

Specifications

Monitor:

• Panel: 4.3" TFT Panel

• Control: Touch button

• Mirror: Anti-Glare Multi-Layered White Mirror Glass

• Video System: 16:9 Widescreen PAL/NTSC Auto Switching

• Resolution: 480x272

• Brightness: 350cd/m2

• Video Inputs:

- Video 1: 2nd Cam or Multimedia/Navigation

- Video 2: Camera Input

• Mount: Clips Over Factory Mirror

• Operating Temperature: -10° to +60°C

• Power Consumption: 1.5W (0.4W Standby)

• Power Supply: 12 Volt DC (10-15VDC)

• Reverse Trigger: 12 Volt DC (connect to reverse lamp)

Camera:

• Lens: 1/4" CMOS P1089 Quality Sensor Chip

• Viewing Angle: 130° Diagonal

• IP Rating: IP66 Water/Dust Ingress

• Video System: PAL (Mirror Image)

• Minimum light level: 0.5 Lux

• Power: 12 Volt DC (10-15VDC)

• Installation: "Butterfly" Mount (Number Plate, Boot Lid, etc.) or Flush Mount (Bumper)

Accessories:

• Video & Power Wiring Harness

• 8-Metre RCA Extension Lead

• 18.5mm Bumper Hole Cutter

• Dual Camera Mounting Heads
