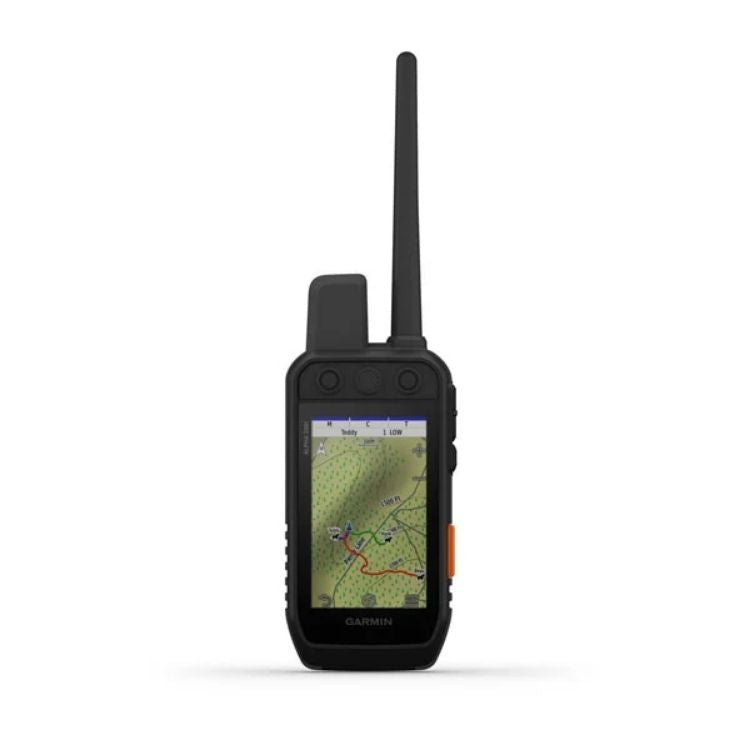

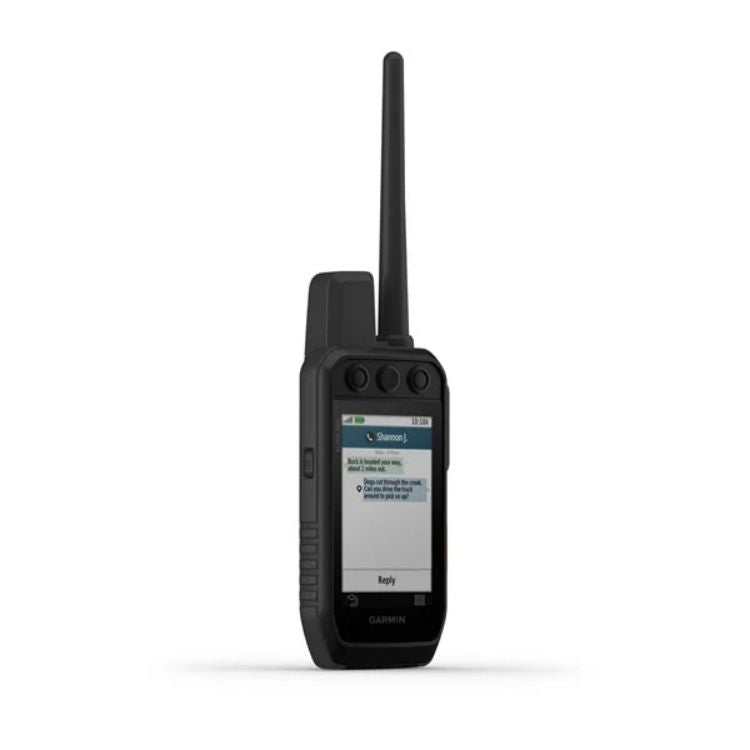

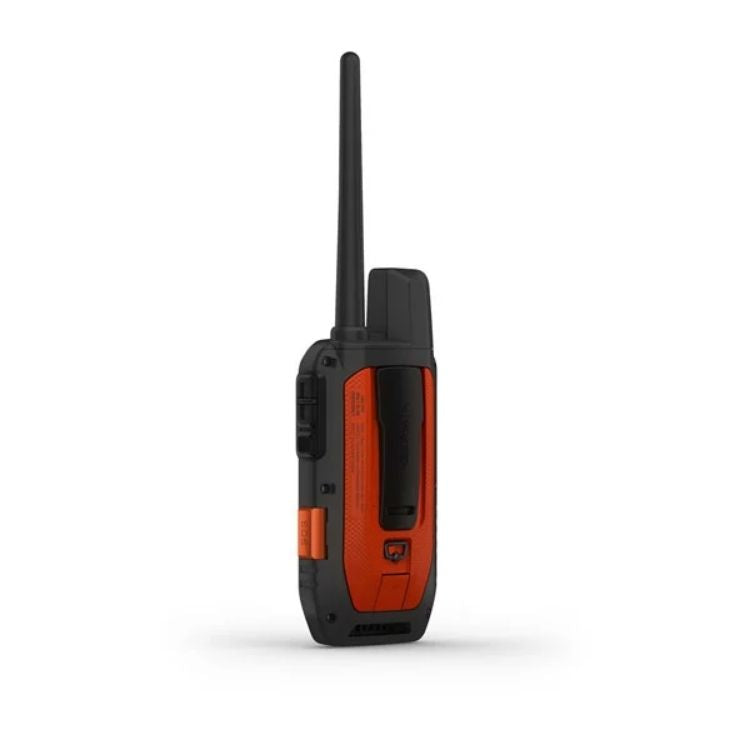

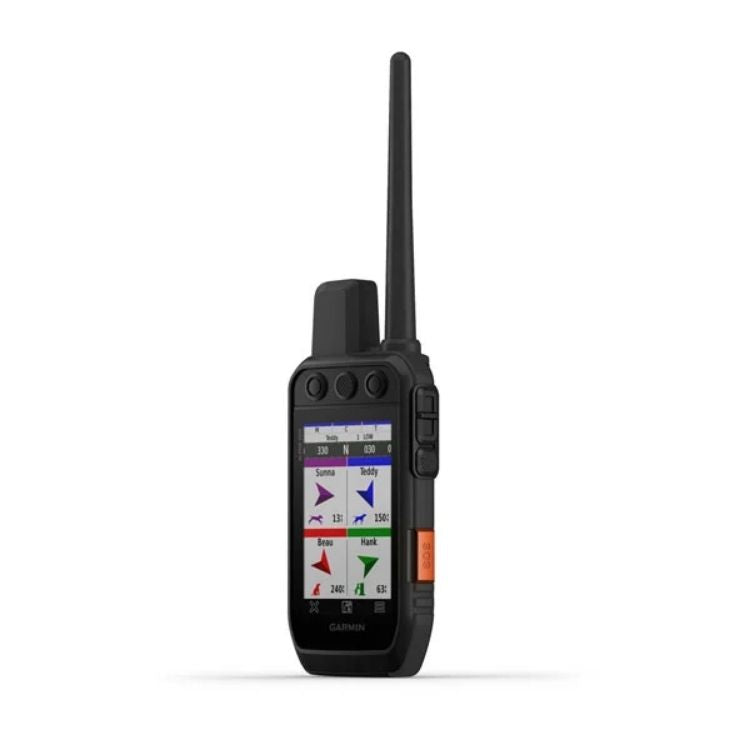

Garmin Alpha 200 Dog Tracking Handheld GPS



• Track and train your dogs with the Alpha 200 featuring a sunlight-readable 3.5 inch capacitive touchscreen and user-friendly, six-button design.
• 3.5” screen designed to make tracking and training simple, accessible and fast.
• Track and train your pack while they're out in the field.
• Keep inactive dogs in the system for easier setup and management.
• Navigate every hunt with the best in Garmin mapping and sensors.
• User-replaceable battery lasts up to 20 hours; up to 15 hours with inReach technology enabled.
• Track Your Pack - Monitor up to 20 dogs from up to 14.5 kilometres (depending on dog device) with a 2.5-second update rate.
• DOG LIST/GROUP MANAGEMENT - Keep inactive dogs in your dog list, and manage active groups so you don't have to add and remove dogs for every hunt.
• SIX-BUTTON DESIGN - Use dedicated buttons for fast training cues and minor adjustments in the field.
• 18 LEVELS OF STIMULATION - Momentary and continuous stimulation options let you customise training for each dog.
• TONE/VIBRATION - Issue different levels of audible tone or vibration commands for quick adjustments to individual dogs.
• PRO VIEW COMPASS - The pro view compass mode gives you simple, at-a-glance tracking that shows which direction and how far away your dogs are, plus you will see when a dog is Treed or OnPoint.
• MULTI-GNSS SUPPORT - Access multiple global navigation satellite systems (GPS and Galileo) to track your pack with greater accuracy than GPS alone.
• TOPOACTIVE MAPS - Preloaded TopoActive mapping provides detailed views of terrain contours, topographic elevations, summits, parks, coastlines, rivers, lakes and geographical points.
• BIRDSEYE SATELLITE IMAGERY - Download BirdsEye Satellite Imagery directly to the handheld for better-than-real-life views of your route, trailheads, clearings and more.
• NAVIGATION SENSORS - A barometric altimeter helps you accurately monitor ascent and descent and see short-term trends in air pressure, and the built-in tilt-compensated three-axis electronic compass keeps your bearing — whether you're moving or not.
• SEE IT ALL - The sunlight-readable 3.5 inch capacitive touchscreen display makes it easy to see and interact with your maps, dog data and more.
• STAY ON THE MOVE - Replaceable battery lasts up to 20 hours, or up to 15 hours with inReach technology enabled.
• ADDITIONAL MAPPING - The microSDâ„¢ card slot allows you to load more mapping options, such as TOPO and HuntView Plus maps (sold separately).
• GARMIN EXPLOREâ„¢ APP - Map, track, sync and share from anywhere using the Garmin Exploreâ„¢ app.

Specifications:

General

• PHYSICAL DIMENSIONS: 6.8 x 16.2 x 3.4 cm *dimensions do not include antenna
• TOUCHSCREEN
• DISPLAY SIZE      4.7 W x 7.7 H cm; 3.5 inch diag (88.9 mm)
• DISPLAY RESOLUTION     282 x 470 pixels
• DISPLAY TYPE     Transflective, colour TFT touchscreen
• WEIGHT               280 g with standard antenna and battery
• BATTERY TYPE    Rechargeable lithium-ion (included)
• BATTERY LIFE     Up to 20 hours; up to 15 hours with inreach® technology enabled
• WATER RATING IPX7
• HIGH-SENSITIVITY RECEIVER
• INTERFACE          High-speed USB
• MEMORY/HISTORY          16 GB

Maps & Memory

• PRELOADED MAPS: Yes (topoactive)
• ABILITY TO ADD MAPS: Yes
• BASEMAP
• AUTOMATIC ROUTING (TURN BY TURN ROUTING ON ROADS): Yes (with optional mapping for detailed roads)
• BIRDSEYE:           Yes, direct to device (no annual subscription required)
• EXTERNAL MEMORY STORAGE:   microsdâ„¢ card (not included)
• WAYPOINTS/FAVORITES/LOCATIONS:      10,000
• TRACKS Up to 20 dogs (TT 15/TT 15 mini and T5/T 5 mini) and buddies (Alpha 100 and Alpha 200i) simultaneously
• TRACK LOG:        20,000 points, 250 saved gpx tracks, 300 saved fit activities
• ROUTES:              250

Sensors

• Barometric Altimeter
• Compass              Yes (tilt-compensated 3-axis)
• Safety and Tracking Features
• Livetrack              yes (with Garmin Exploreâ„¢)

Outdoor Recreation

• Sun And Moon Information
• Custom Maps Compatible
• Inreach® Features
• Interactive sos
• Send and receive text messages to sms and email
• Exchange locations with other inreach device
• Virtual keyboard for custom messaging
• Send waypoints to mapshare during trip
• Send route selection to mapshare during trip

Two-way Radio Features

• FREQUENCY BAND           VHF
• RANGE  TT 15/T 5, 14.5 kilometres; TT 15 mini/T 5 mini, 6.5 kilometres

Outdoor Applications

• Compatible with garmin exploreâ„¢ app
• Garmin explore website compatible

Connections

• WIRELESS CONNECTIVITY: Yes (Wi-Fi®, Bluetooth® and ANT+®)

In the Box:

• Alpha^® 200 handheld with rechargeable lithium-ion battery pack
• Belt clip
• AC adapter
• microUSB cable
• Documentation
