ICOM IC-M85E Marine & Land Use Hybrid Handheld Radio
ICOM IC-M85E Marine & Land Use Hybrid Handheld Radio is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We use different courier companies and Australia Post based on your location and package size to deliver your order. Items are shipped within 1-2 days of your placing the order, unless the item is backordered, in which case you will be promptly notified. It will typically take 1-6 business days from shipment before you will receive your order. We will notify you if there are any likely delays in shipping your order.
PLEASE NOTE: We do not ship large items to PO Box addresses.
You can pick up your order from our store in Endeavour Hills. Please give atleast 24 hours’ notice if you wish to do so.
What's in the box?
What's in the box?
ICOM IC-M85E Marine & Land Use Hybrid Handheld Radio
Description
Description
ICOM IC-M85E Marine and LMR Hybrid Handheld Radio for Professional Use
FREE SHIPPING

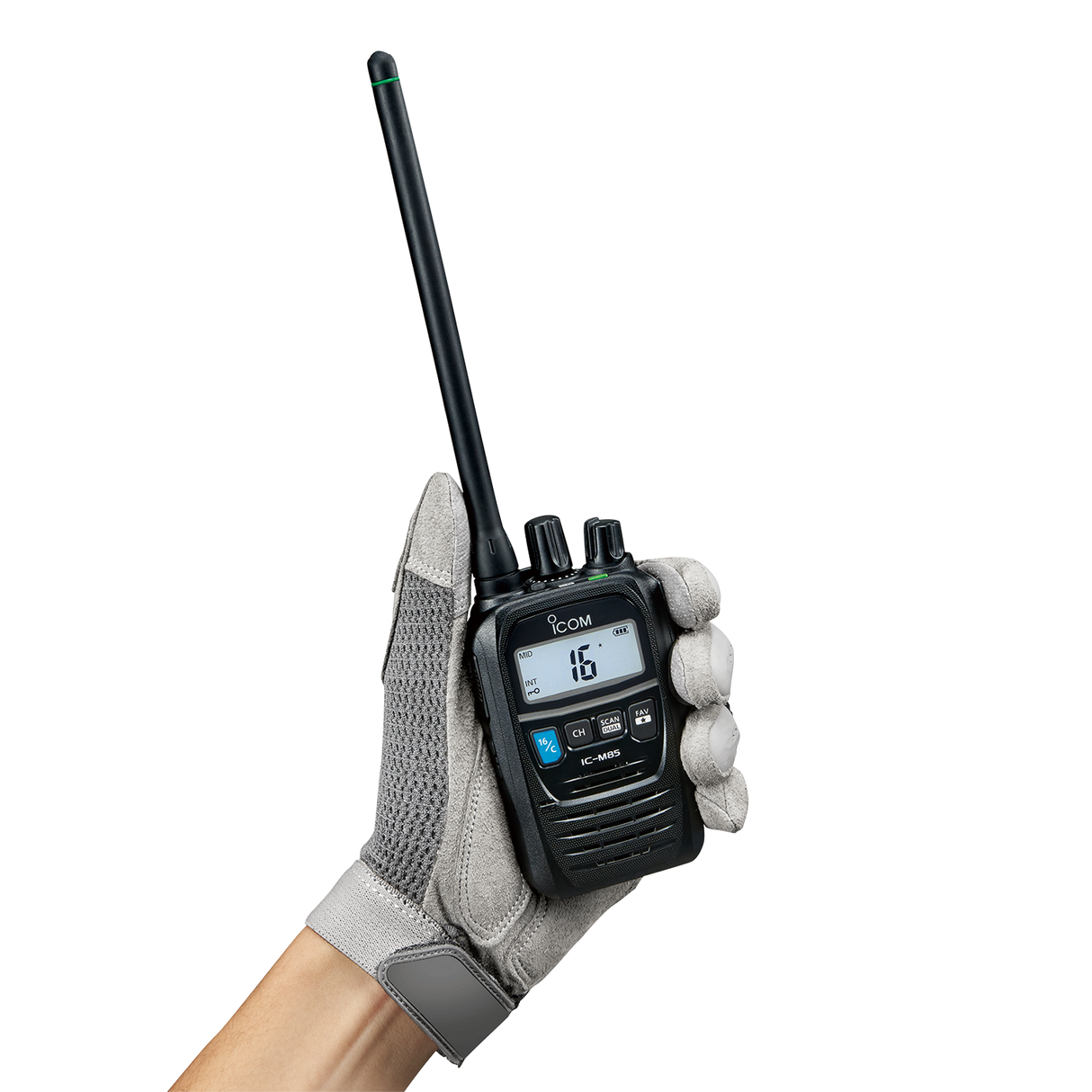

Compact and Lightweight
The IC-M85E is the most compact (W×H×D: 56 × 92 × 36.2 mm) and lightweight (weight: 281 g (with BP-294, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio in the world*.
* As of November 2021, researched by Icom.
Covering 136–174 MHz LMR Frequency
In addition to VHF marine channels, the IC-M85E covers 136–174 MHz LMR channels. Up to 100 programmable channels are available for LMR use. Each channel is programmable with CTCSS and DTCS tone.
700 mW Powerful Audio
Despite its compact body, the IC-M85E delivers 700 mW of loud audio. Clear communications is vital in noisy environments.
Private Conversation
The radio has a built-in Voice Scrambler and provides private communication between stations (32-code, compatible with UT-112 voice scrambler unit).
Automated Emergency Alarm
The IC-M85E has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.
Instant Operation with Multi-Function Button
Channel group changing (marine ⇔ land mobile) or the scrambler function ON/OFF can be assigned in the multi-function button on the top panel*. The Key lock function can be activated by holding the button.
* Ask dealer for details.
IP67 and MIL-STD Rugged Construction
The IC-M85E is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.
And More
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Internal VOX capability for hands-free operation
- 21 hours of long battery life with BP-294 (TX: RX: Standby=5:5:90.)
- 5 W output power
- The self check function checks internal temperature, and connected battery voltage (over voltage detection)
- Monitor function
- Priority scan function
- Dual/Tri-watch function for monitoring CH16 and/or call channel
- Favorite channel function for quick access to often used channels
Specifications:
| Marine channels | LMR channels | ||
|---|---|---|---|
| Frequency coverage | Tx | 156.000–161.450 MHz | 136.000–174.000 MHz |
| Rx | 156.000–163.425 MHz | ||
| Usable channel groups, Number of channels |
INT, USA* channels (* Varies according to version) |
100 land mobile channels | |
| Type of emissions | 16K0G3E | (EUR) 16K0F3E/8K50F3E |
|
| Channel spacing | 25 kHz | (EUR) 25/12.5 kHz |
|
| Power supply requirement | 7.2 V DC nominal | ||
| Current drain (approximate) |
Tx (at 5 W) | 1.5 A | |
| Rx Max. audio | 0.45 A | ||
| Antenna impedance | 50 Ω | ||
| Operating temperature range | -15 °C to +55 °C | -25 °C to +55 °C | |
| Dimensions (W×H×D) (Projections not included) |
56 × 92 × 36.2 mm (With BP-294) 56 × 92 × 29 mm (With BP-290) |
||
| Weight (approximate) |
281 g (with BP-294, FA-SC58V and MBB-3) |
||
