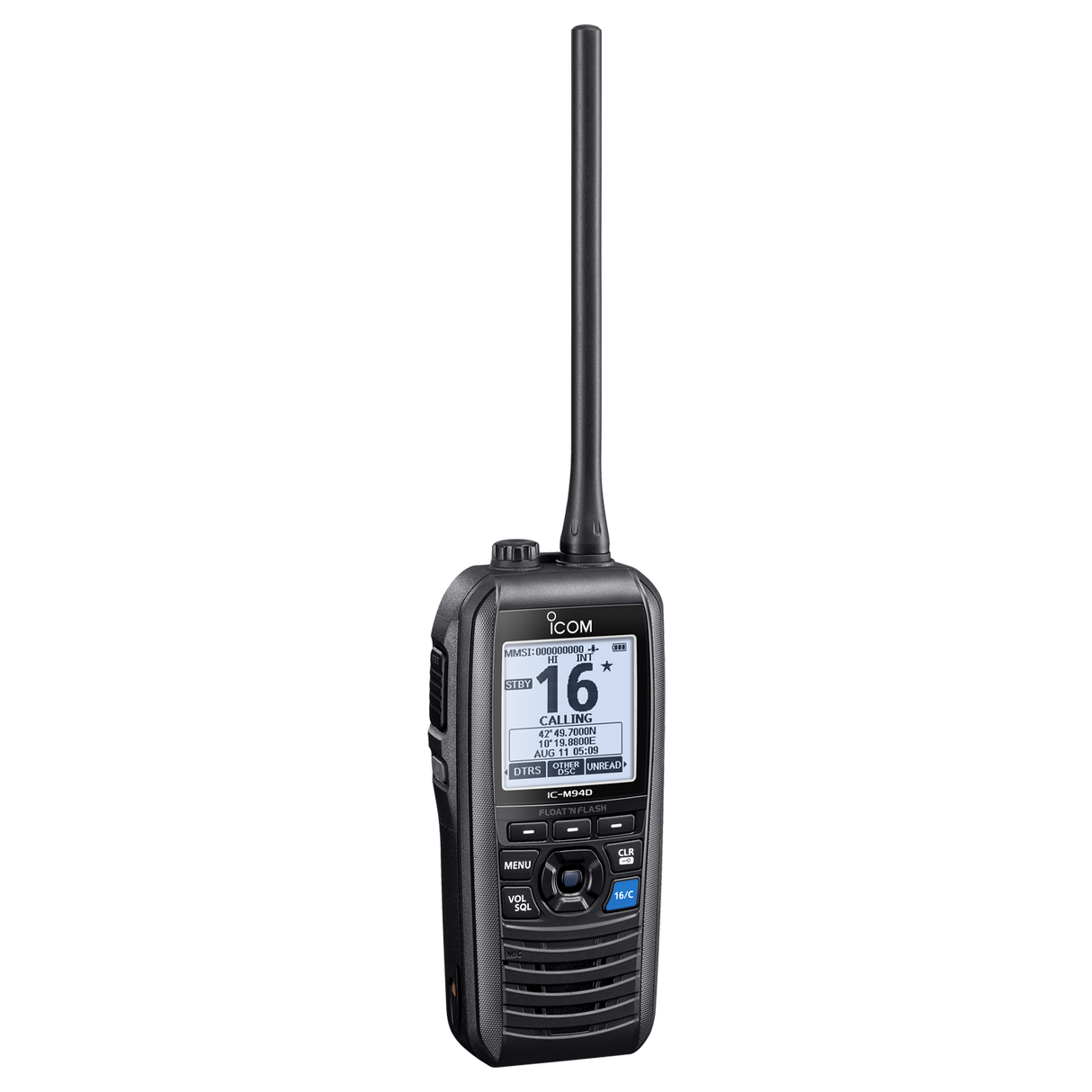

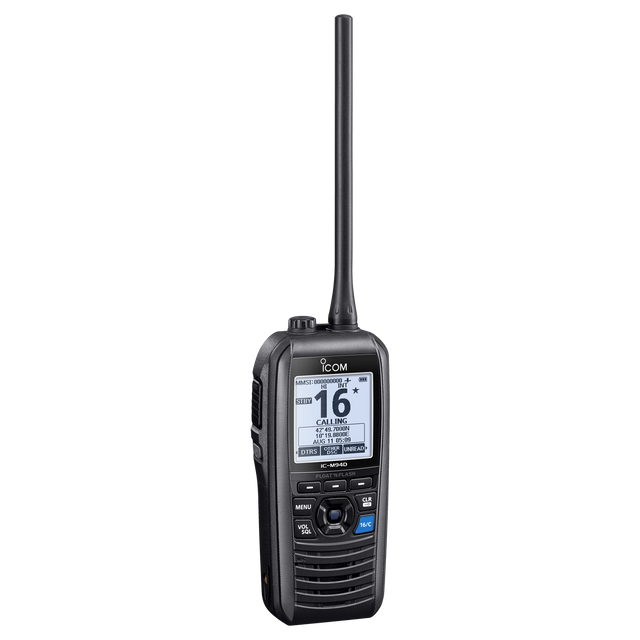

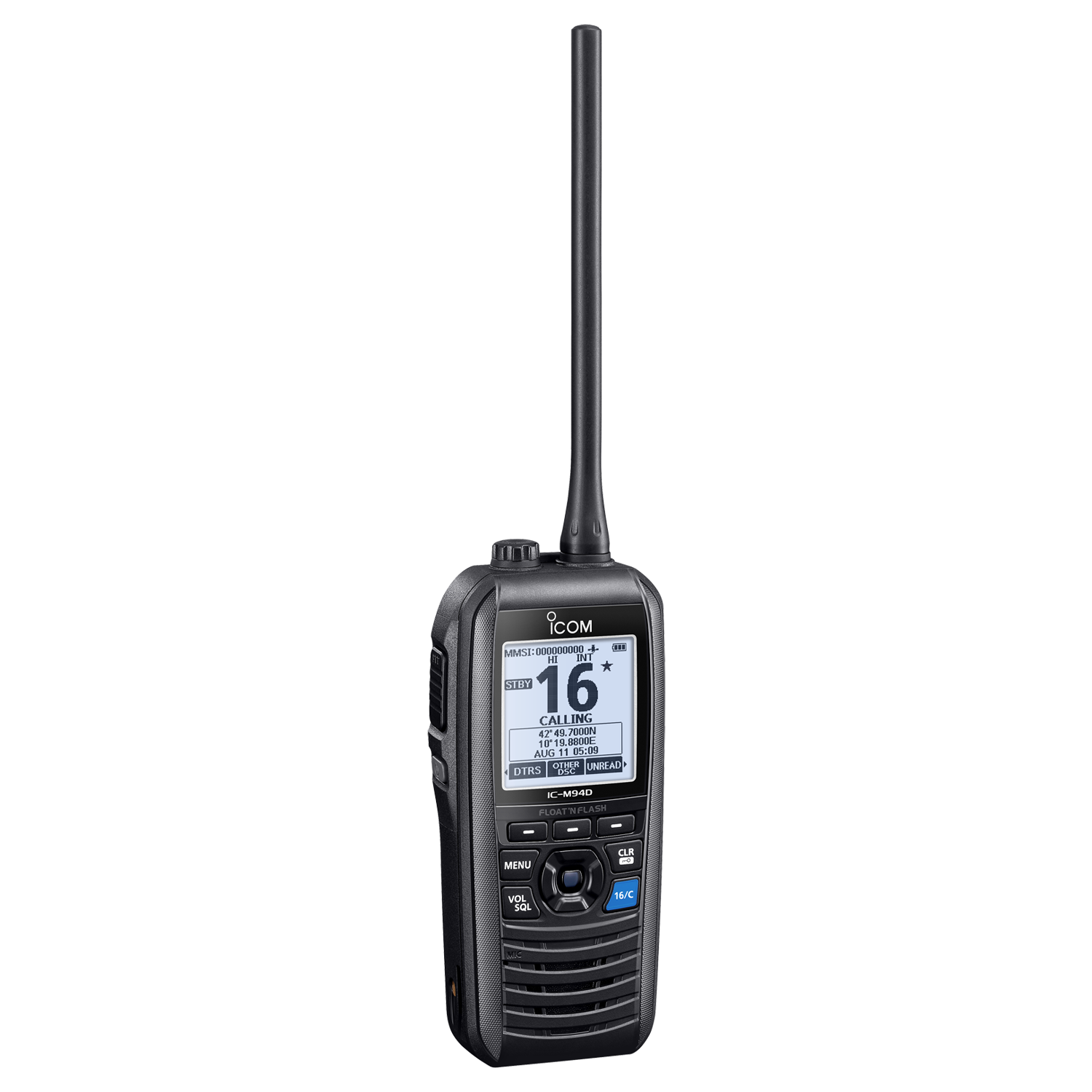

ICOM IC-M94DE Handheld VHF Marine Radio with DSC & AIS
ICOM IC-M94DE Handheld VHF Marine Radio with DSC & AIS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We use different courier companies and Australia Post based on your location and package size to deliver your order. Items are shipped within 1-2 days of your placing the order, unless the item is backordered, in which case you will be promptly notified. It will typically take 1-6 business days from shipment before you will receive your order. We will notify you if there are any likely delays in shipping your order.
PLEASE NOTE: We do not ship large items to PO Box addresses.
You can pick up your order from our store in Endeavour Hills. Please give atleast 24 hours’ notice if you wish to do so.
What's in the box?
What's in the box?
ICOM IC-M94DE Handheld VHF Marine Radio with DSC & AIS
Description
Description
Available from Mid-July'25

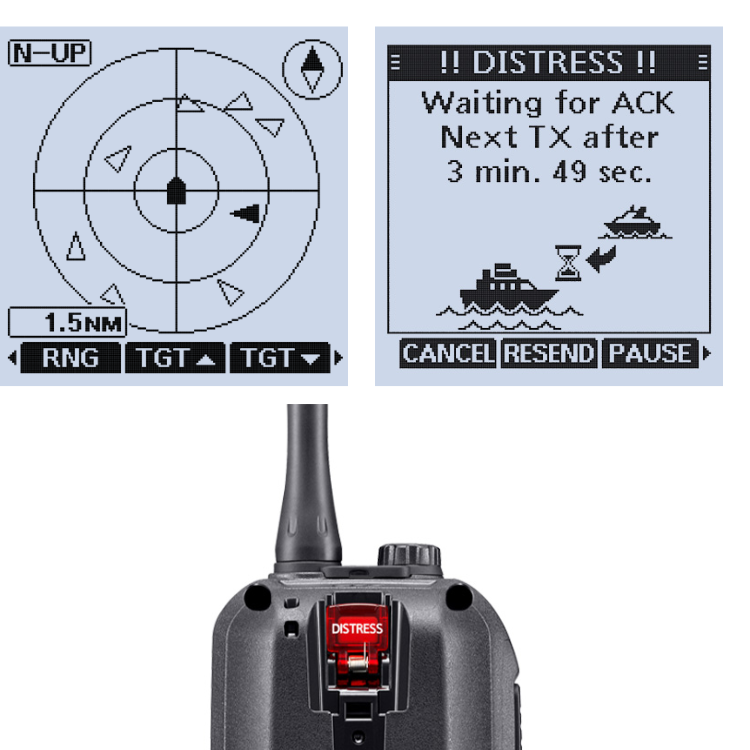

AIS Receiver and DSC in One Marine Handheld

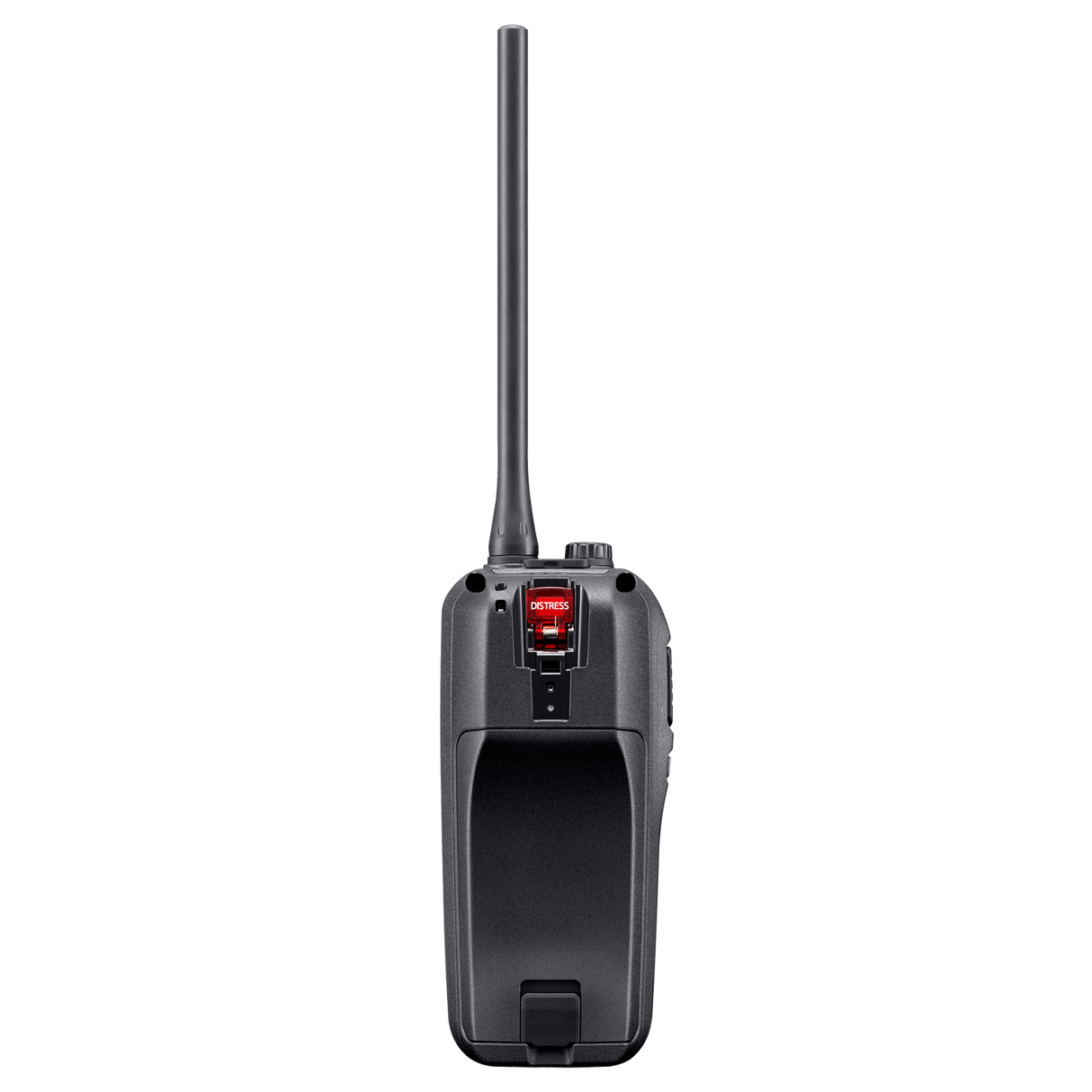

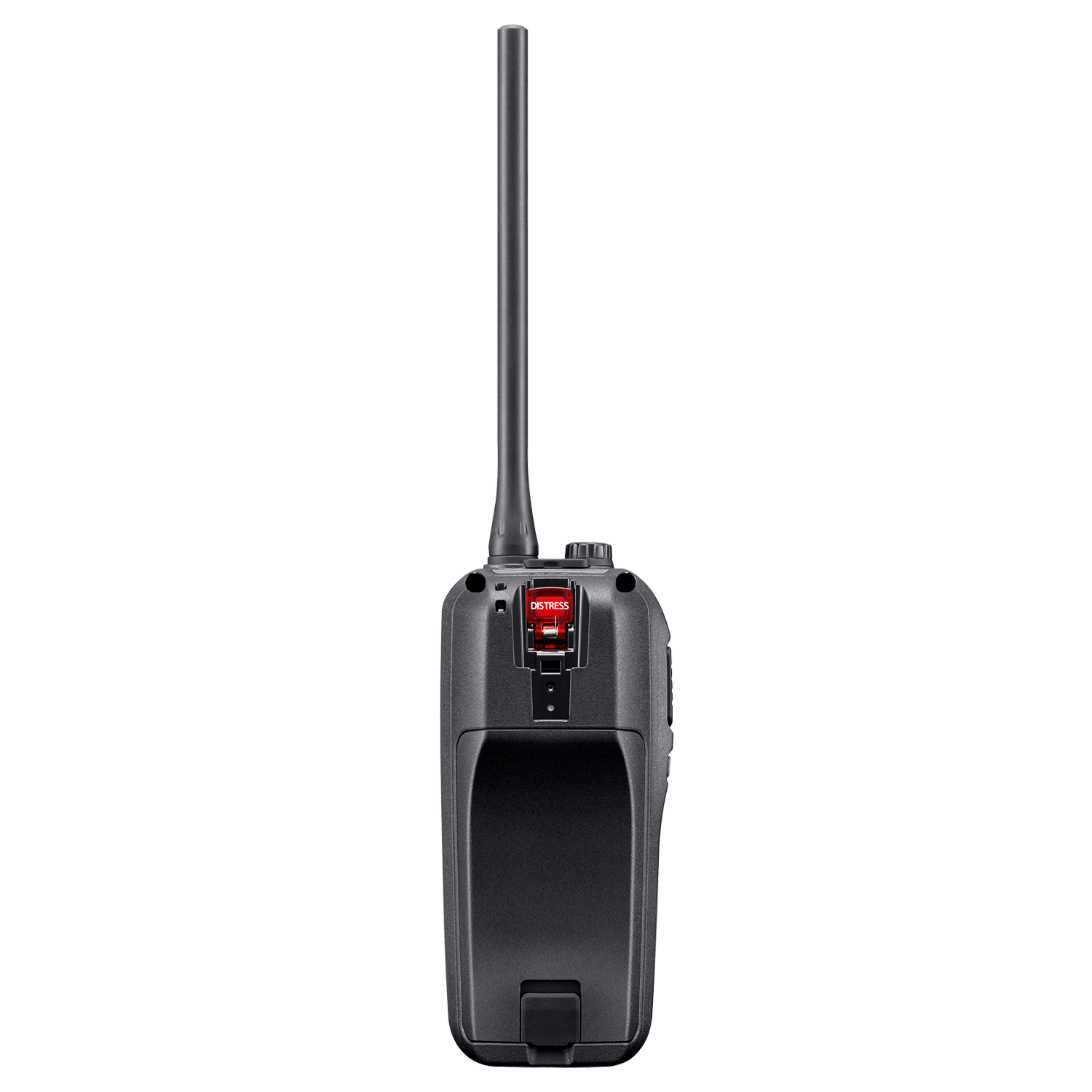

AIS receiver and DSC function add further assurance to your safety at sea. The integrated AIS receiver displays vessel traffic information on the screen. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel Distress button.
5 W RF Output Power and 10 Hours of Operating Time
The IC-M94DE’s 5 Watts of transmit power provides extended communication range for the user. The supplied BP-306 high capacity 2400 mAh (typical) Li-ion battery, provides 10 hours of operating time, under normal conditions*2.
*2 Approximate, typical operation with TX: RX: Standby= 5: 5: 90 duty ratio when the Power save function is ON.
Class-Leading 1500 mW Audio Output
Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.
Simplified Navigation Function
The Navigation function guides you to a specified waypoint. You can assign up to 50 favourite fishing spots or destinations as waypoints.
Float’n Flash and MOB Auto Set Functions
If the IC-M94DE falls into the water, it will float and the LCD screen, keys and rear panel Distress button will flash helping you to retrieve it. Pressing the distress button while the Float’n Flash is working will transmit the MOB distress signal.
Other Features:
- Integrated GPS receiver
- Active noise cancelling technology
- IPX7 waterproof (1 m depth of water for 30 minutes)
- Dualwatch and Tri-watch functions
- Favourite channel function
- Supports 4-digit channels
- AquaQuake™ prevents audio degradation from a water-logged speaker
Specifications:
| IC-M94DE AUS Version |
||
|---|---|---|
| Frequency range | Tx | 156.025–157.425 MHz |
| Rx | 156.300–162.000 MHz | |
| DSC | 156.525 MHz | |
| AIS (RX) | 162.025 MHz | |
| Usable channel groups | INT, USA and WX channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) 16K0GXW (AIS) |
|
| Current drain (at 7.2 V DC) |
TX (5 W/1 W output) | 1400 mA/700 mA (approx.) |
| RX (Inter SP/Exter SP Max. audio) | 700 mA/350 mA (approx.) | |
| Operating temperature range | –15°C to +55°C | |
| Antenna impedance | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
60.9 × 145.8 × 43.8 mm | |
| Weight (approximately) | 357 g (With BP-306, antenna, MB-133) |
|
Transmitter
| IC-M94DE AUS Version |
||
|---|---|---|
| Output power (Hi/Low) | 5 W/1 W | |
| Max. frequency deviation | ±5 kHz | |
| Frequency stability | ±10 ppm | |
| Spurious emissions | 0.25 μW typical | |
Receiver
| IC-M94DE AUS Version |
||
|---|---|---|
| Sensitivity (at 20 dB SINAD) DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
–6 dBμ emf typical –3 dBμ emf typical –107 dBm |
|
| Squelch sensitivity (Threshold) | –6 dBμ emf typical | |
| Adjacent channel selectivity DSC receiver (at 1% BER) |
65 dB 73 dBμ emf |
|
| Spurious response DSC receiver (at 1% BER) |
65 dB 73 dBμ emf |
|
| Intermodulation DSC receiver (at 1% BER) |
65 dB 68 dBμ emf |
|
| Hum and noise | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 1500 mW typical (8 Ω load) |
| External SP | 350 mW typical (8 Ω load) | |
Measurements made in accordance with AS/NZS 4415.2-2003 (for AUS version).
Applicable U.S. Military Specifications & IP Rating
| Standard | ||
|---|---|---|
| Low Pressure |
500.5 |
I, II |
| High Temperature |
501.5 |
I, II |
| Low Temperature |
502.5 |
I, II |
| Temperature Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
- |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Water |
IPX7 (Waterproof protection) |
All stated specifications are subject to change without notice or obligation.
Box includes:
- Radio
- BP-306 battery pack
- BC-251 battery charger
- AC adapter*
- MB-133 belt clip
- Antenna
- Hand strap
