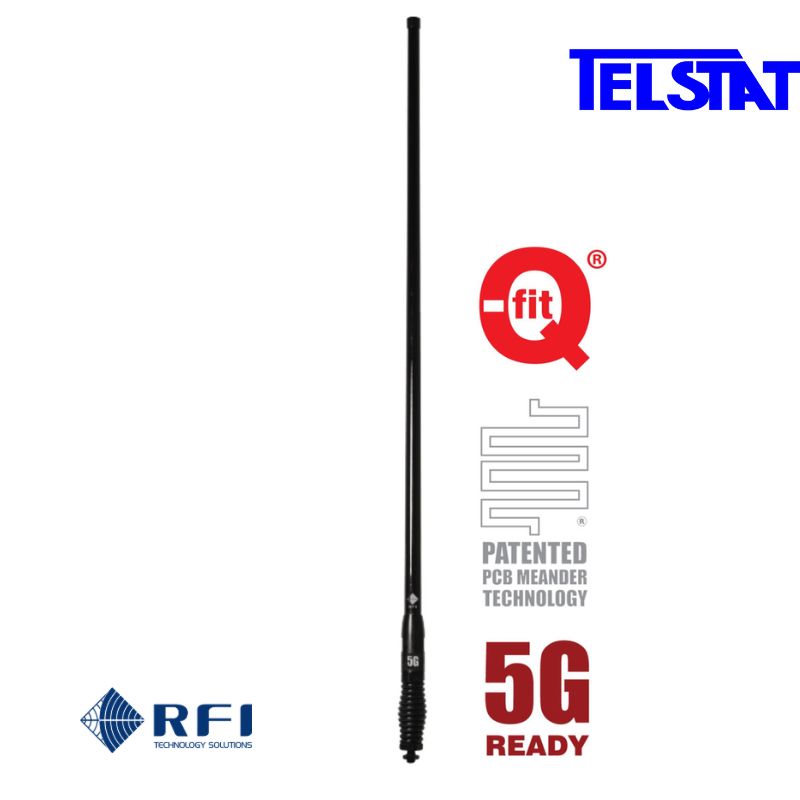

RFI CDQ8195-B 4G/5G Mobile Antenna

RFI's new CDQ8195 5G LTE antenna not only covers the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

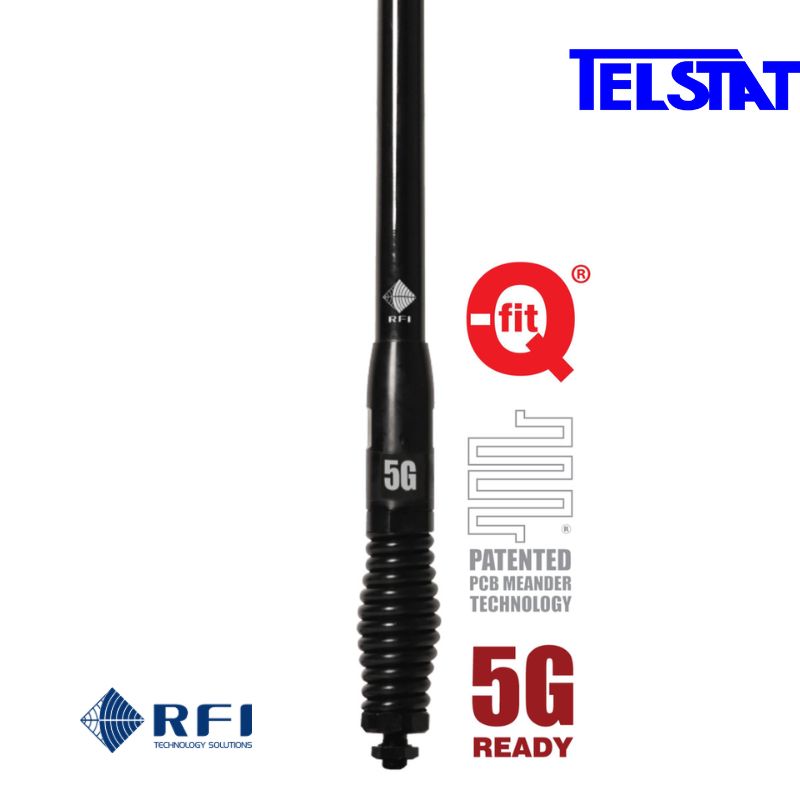

It is ideal for use with cellular modems & active repeaters, especially when signal is poor. The outstanding performance of the CDQ8100 series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CDQ8195 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

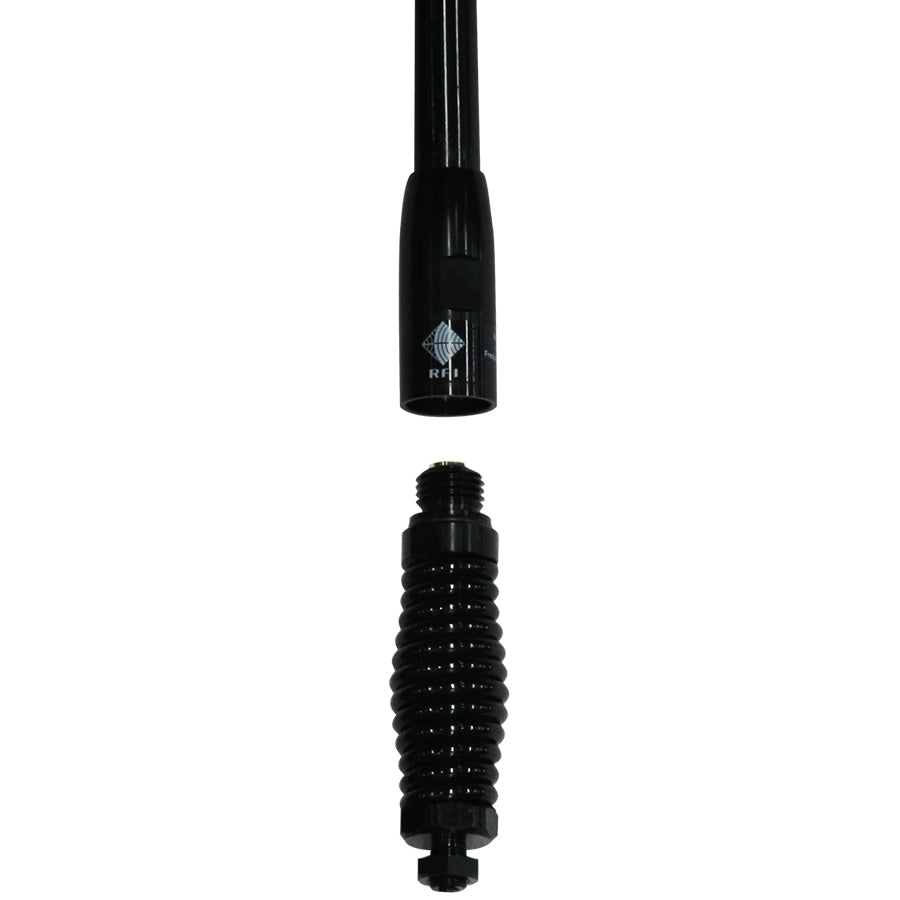

In addition, the CDQ8195 is designed with Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antenna is provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.

Features:

• Patented PCB based collinear design offering the ultimate in pattern and gain stability
• Ideal for all new5G & 4G LTE networks with true multi-band coverage
• High gain across all bands making it suiting fringe and rural applications
• Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
• Frequency: 1710 -2170, 2300 - 2700, 3400 - 3800, 698-960MHz
• Tunable Bandwidth - Full
• Nominal Gain dBi - 6.5 / 4.5 / 5.5 / 6.5
• Radiator Material: Flexible PCB
• Power W - 10
• Cable and Connector 5m of 9006 low loss cable terminated with SMA Male connector
• Radome Diameter mm - 22.5 - 15.6 Tapered
• Length mm- 970
